MNIST Digit Classifier

End-to-end project to build, containerize, and deploy a digit recognition application.

A personal project to design and deploy an end-to-end digit classification system using the MNIST dataset. The pipeline includes model development, web front-end integration, database logging, and full containerization for deployment on a self-managed server.

1. Model Development

Using PyTorch, two models were developed and trained locally:

  • Simple Neural Network: Achieved 97.33% accuracy.
  • Convolutional Neural Network (CNN): Achieved 98.42% accuracy. As expected, CNNs outperform standard feedforward networks in image-based tasks.

Progress:

  • Preprocessing with normalization specific to the MNIST dataset.
  • Implemented and compared multiple model architectures.
  • Saved models for downstream use in the Streamlit interface.

Next Steps:

  • Write a utility predict() function to streamline web integration.
  • Store and version trained models for reproducibility.

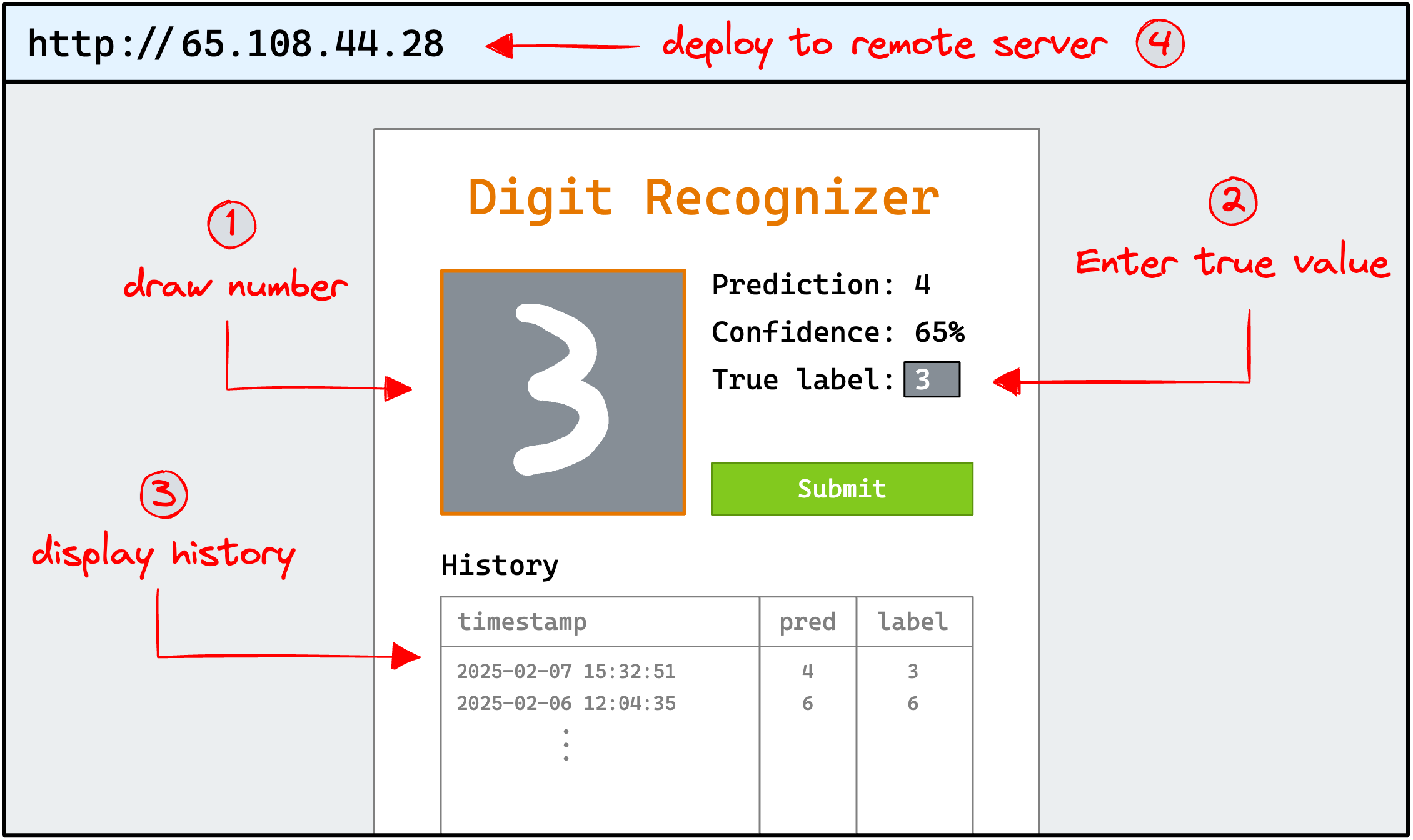

2. Interactive Web Front-End (Streamlit)

A Streamlit-based web application allows users to draw digits directly on a canvas. The image is preprocessed and passed to the model for real-time prediction.

Progress:

  • Implemented an interactive canvas for digit input.
  • Integrated the model to return predictions and confidence scores.

Include picture of interface.

Next Steps:

  • Add functionality to compare predictions from different models.
  • Improve UI layout and usability.
  • (Optional) Embed a demo video or screenshots of the UI.

3. Data Logging (PostgreSQL)

All predictions made via the interface are logged to a PostgreSQL database. Logged data includes:

  • Timestamp
  • Predicted digit
  • User-provided true label
  • Confidence score
  • Second-highest prediction (if initial prediction is incorrect)

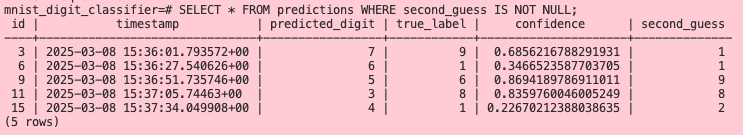

Example of structured logs stored in PostgreSQL.

Note: While model accuracy is high on MNIST test data, real-world inputs from the canvas may degrade performance. Ongoing analysis of logged data helps identify these gaps.

4. Containerization (Docker)

All components of the application — PyTorch service, Streamlit app, and PostgreSQL — have been containerized using Docker.

  • Streamlit App Dockerfile: A Dockerfile has been created for the Streamlit app, allowing it to run with all the necessary dependencies.

  • PostgreSQL Database Containerization: A PostgreSQL database is also containerized with Docker, which includes persistent volumes for data storage. This ensures that database data persists even if the container is restarted.

  • Docker Compose: Docker Compose is used to orchestrate the multi-container application, managing both the Streamlit frontend and PostgreSQL database. The Compose file includes environment variables for PostgreSQL credentials and the application, facilitating the setup of the entire stack with a single command.

  • Docker Volumes: Volumes are used to persist PostgreSQL data. This ensures that even if the container is restarted or destroyed, the data remains intact.

5. Deployment

The final system has been deployed using Render for hosting and Supabase for PostgreSQL (as these are free resources). Docker Compose handles the orchestration of services. The system is designed to be publicly accessible via domain or IP and provides an end-to-end solution for MNIST digit classification.

  • Supabase Integration: The PostgreSQL database, initially running within a Docker container, has been moved to Supabase for production purposes. This allows the app to use a managed cloud database while keeping the rest of the stack containerized.

  • Render Deployment: The application is deployed on Render, a cloud platform that supports Docker-based deployments, making it easy to scale and manage the application in a production environment.

The final product is available to view at:
https://mnist-digit-classifier-b4sz.onrender.com/ (However, I have used a free server, so when the page has not been visited for a while, there is a fairly long wait before it loads)

Preview of the deployed product!
Capture of the database as currently held in Supabase :)

This project introduced me to a full-stack ML application lifecycle — from model training to real-world deployment. It was a valuable learning opportunity in DevOps, containerization, and interactive user interfaces for ML applications.

Additional Thoughts: As the MNIST dataset is a collection of handwritten data, using the model on the digits drawn on the drawable canvas means that the predictions are extrapolated, and therefore does not have the greatest accuracy. While I achieved my goal of carrying out an end-to-end application, there are definitely a few improvements that could be made, such as saving the images to allow the model to learn from its errors. Maybe next time!
